JDAquatec Midi reactor + bypass with mounting bracket
- Effortless CO2 enrichment via the filter circuit
- Easy technology
- With integrated bypass
- Suitable for all flow rates
- For aquariums up to 500 litres
Curbside delivery: This item ships by freight carrier and is delivered to the curb only, not to your door or into your home. The carrier will call you in advance to schedule a delivery date. Learn more about freight delivery
Customers also bought
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description

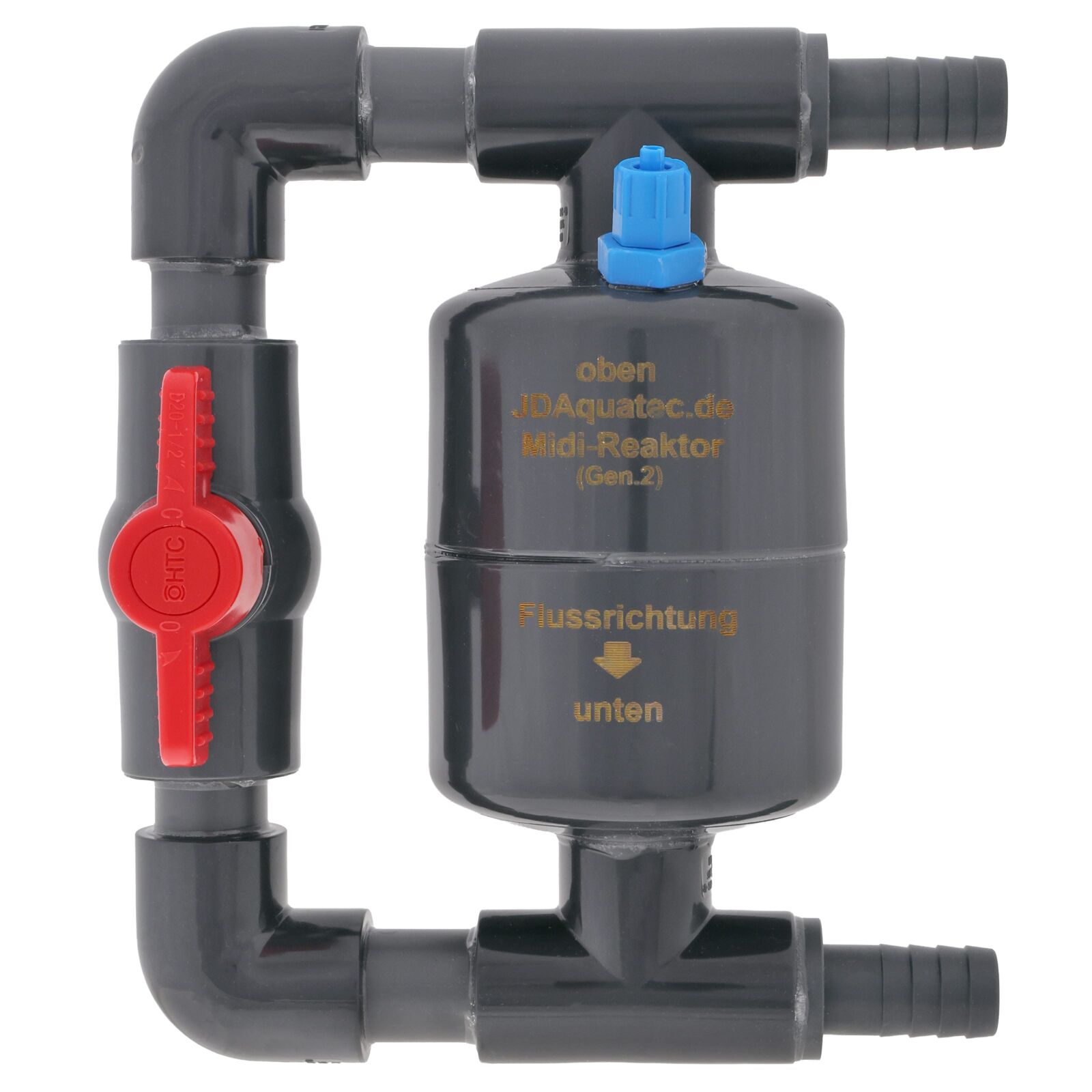

The JDAquatec Midi Reactor with a fixed bypass enables highly efficient dissolution of CO2 directly within the filter circuit. Thanks to the integrated bypass with ball valve, the filter’s performance remains unaffected, even at high flow rates. The reactor is ideal for aquariums up to 500 litres and provides a CO2 dissolution capacity of up to 1,500 bubbles per minute. With its sturdy mounting bracket and functional design, the system can be securely and flexibly integrated into existing filter installations.
The reactor is discreetly installed outside the aquarium in the line between the filter and the return hose. It is first secured using the sturdy mounting clamp, while the additional bracket provides even greater stability and safety. As the system operates without a diffusion membrane, the water flowing through it is enriched directly with CO2 and distributed evenly throughout the entire aquarium via the filter circuit. This enormous dissolution efficiency is achieved by a specially generated water vortex inside the reactor. This vortex keeps the injected CO2 in the upper section of the reactor until it is completely dissolved in the water. Unlike many other systems, the reactor operates without trickle media or other internal components that could become clogged over time. As a result, the system operates extremely reliably and is completely maintenance-free.
To control the CO2-concentration in the aquarium, a drop checker is recommended. Furthermore, the upstream CO2-system should be protected from backflowing water with an appropriate check valve.
The CO2-reactor can also be used for saltwater aquariums. However, it is recommended to use it only in nitrogen and phosphate limited marine tanks and to perform a consistent pH-control.
Features
- Efficient CO2 dissolution within the filter circuit
- Fixed bypass with ball valve
- Suitable for all flow rates
- Creates a specialised water vortex for complete CO2 dissolution
- Without trickle media – no risk of clogging
- Completely maintenance-free
- Sturdy mounting with clamp and extra bracket foreven more security
- For aquariums up to 500 litres (Midi Reactor)
- High CO2 dissolution capacity of up to 1.500 bubbles/minute
- Also suitable for marine aquariums
Dimensions
| JDAquatec Midi Reactor + Bypass – with Bracket – 12 mm | |
|---|---|
| Height | 20 cm |
| Width | 16 cm |
| Depth | 9 cm |
| Recommended for aquariums | up to 500 litres |
| Hose connection | 12 mm (inner diameter) |
| JDAquatec Midi Reactor + Bypass – with Bracket – 16 mm | |
|---|---|
| Height | 20 cm |
| Width | 16 cm |
| Depth | 9 cm |
| Recommended for aquariums | up to 500 litres |
| Hose connection | 16 mm (inner diameter) |
| JDAquatec Midi Reactor + Bypass – with Bracket – 20 mm | |
|---|---|
| Height | 20 cm |
| Width | 16 cm |
| Depth | 9 cm |
| Recommended for aquariums | up to 500 litres |
| Hose connection | 20 mm (inner diameter) |
Scope of Delivery
- Midi CO2 Reactor
- Fixed bypass with ball valve

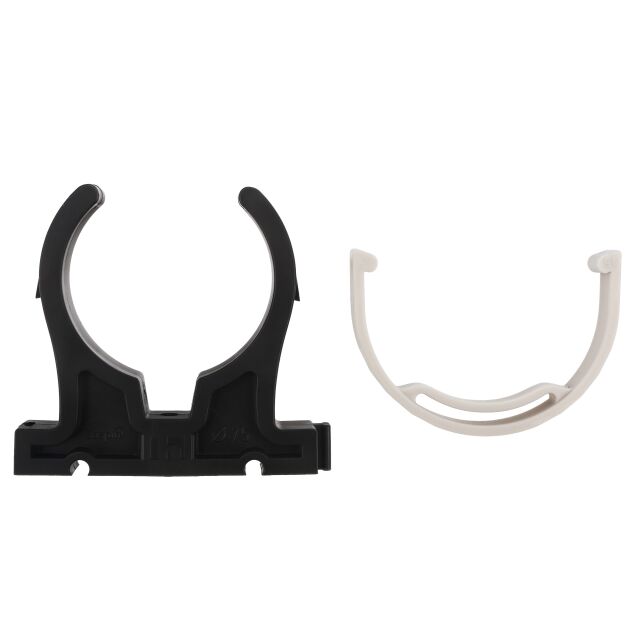

- Mounting bracket: clamp and extra bracket
JDAquatec
JDAquatec is a German manufacturer of aquarium technology with a focus on CO2 systems for freshwater aquariums. The products are designed for efficient injection and controlled dosing of carbon dioxide within the aquarium system. Well-engineered constructions with integrated bypass functions support an even distribution in the water circulation. The technology is developed for straightforward installation and reliable long-term operation. JDAquatec addresses aquarists who aim to promote healthy plant growth and maintain stable water parameters in planted aquariums.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | JDAquatec Jörg Düren |
| Street | Hans-Sachs-Str. 52 |
| City | 47445 Moers |
| State | Nordrhein-Westfalen |
| Country | Deutschland |
| joergdueren@aol.com | |
| Website | www.jdaquatec.de |
General information
Please choose a variant to see more information.
| Item no. |
|
| EAN | |
| Weight | |
| Shipping weight |
Questions and answers about JDAquatec - Midi reactor + bypass - with mounting bracket
You have questions about this product? Ask other customer or our support team about this product!
Customer reviews
2 Reviews
| 5 Stars(2) |
|
| 4 Stars(0) |
|
| 3 Stars(0) |
|
| 2 Stars(0) |
|
| 1 Star(0) |
|
Der Einbau sowie die Inbetriebnahme war sehr einfach und ging schnell. Co2 wäscht sich top ein und nach ein paar Stunden färbe sich der Checker hellgrün. Un (read more)
The reactor from JD Aquatec, which has been in use on my 100 x 50 x 50 cm aquarium for three years, has proven to be very reliable. (read more)
Show original
Eine uneingeschränkte Empfehlung
Der Reaktor von JD Aquatec, der seit drei Jahren bei mir an einem Aquarium der Größe 100 x 50 x 50 cm im Einsatz ist, hat sich als sehr zuverlässig erwiesen. Ich verwende ihn zusammen mit dem Kugelblasenzähler von JDAquatec.
In dieser Zeit habe ich den Reaktor zweimal mit Chlorbleiche gereinigt.
Das CO₂ wird vollständig gelöst, es sind absolut keine Blasen bzw. Bläschen zu sehen, auch nicht sporadisch.
Der Reaktor ist bei mir wie folgt in den Kreislauf eingebaut:
Das Wasser kommt gereinigt aus dem Filter, läuft zuerst in einen UV-C-Klärer, dann weiter zum Reaktor und schließlich zum Durchlauferhitzer, bevor es in das Aquarium zurückfließt.
