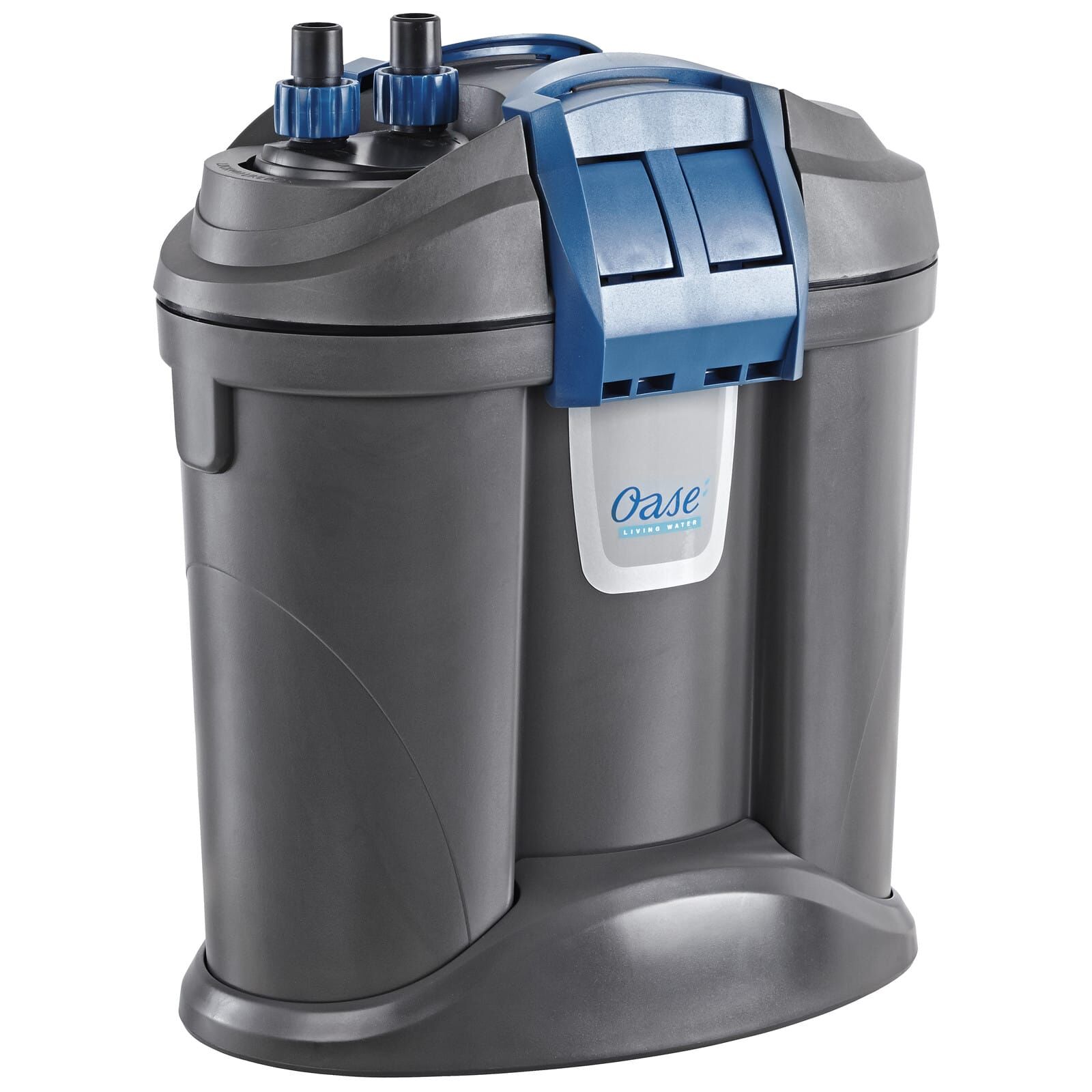

Oase FiltoSmart
- Crystal clear water thanks to a large filter surface
- Automatic prevention of water leakage while cleaning
- Heater for the models 100, 200 & 300 can be retrofitted
- Easy to open: EasyClick opening mechanism
- Including connection kit
Curbside delivery: This item ships by freight carrier and is delivered to the curb only, not to your door or into your home. The carrier will call you in advance to schedule a delivery date. Learn more about freight delivery
Customers also bought
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The external filters of the FiltoSmart series offer comfort and flexibility for aquariums up to 300 litres volume. Thanks to multi-stage, mechanical-biological filtration, they ensure crystal-clear water. The water flow rate can be regulated individually. Thanks to the EasyClick opening mechanism, the filter is easy to open. As a complete set for an easy start.
The HeatUp control heater can be retrofitted to the FiltoSmart 100, FiltoSmart 200 and FiltoSmart 300 models using ThermoFit.
Features
- Mechanical and biological filtration for clear and healthy aquarium water
- Adjustable water flow rate
- Large filter surface in a compact size
- Low power consumption and quiet operation
- Practical self-venting function
- Placeable Besides or behind the aquarium. Optional bracket allows mounting on the aquarium glass
- Including filter media, hoses, adapter, flow regulator intake and out flow tube, as well as water diffuser
- Adjustable heater HeatUp can be retrofitted
- Suitable for marine water (salt)
Usage
Operating instructions can be downloaded here.
Technical Data
| Oase FiltoSmart - 60 | ||
|---|---|---|
| Power consumption | 5 W | |
| Pump flow rate | 300 l/h | |
| Water column | max. 0,7 m | |
| Pre-Filtration volume | 0,28 l | |
| Filtration volume | 0,5 l | |
| Oase FiltoSmart - 100 | ||
|---|---|---|
| Power consumption | 11 W | |
| Pump flow rate | 600 l/h | |
| Water column | max. 1,1 m | |
| Pre-Filtration volume | 0,7 l | |
| Filtration volume | 1,3 l | |
| Oase FiltoSmart - 200 | ||
|---|---|---|
| Power consumption | 17 W | |
| Pump flow rate | 800 l/h | |
| Water column | max. 1 m | |
| Pre-Filtration volume | 1,5 l | |
| Filtration volume | 4,2 l | |
| Oase FiltoSmart - 300 | ||
|---|---|---|
| Power consumption | 23 W | |
| Pump flow rate | 1000 l/h | |
| Water column | max. 1,3 m | |
| Pre-Filtration volume | 1,5 l | |
| Filtration volume | 6,4 l | |
Dimensions
| Oase FiltoSmart - 60 | ||
|---|---|---|
| Length | 155 mm | |
| Width | 95 mm | |
| Height | 170 mm | |
| Hose connection | 9/12 bzw. 10 mm | |
| Power cord length | 1,5 m | |
| Suitable for aquariums | up to 60 l | |
| Oase FiltoSmart - 100 | ||
|---|---|---|
| Length | 205 mm | |
| Width | 139 mm | |
| Height | 260 mm | |
| Hose connection | 12/16 bzw. 13 mm | |
| Power cord length | 1,5 m | |
| Suitable for aquariums | up to 100 l | |
| Oase FiltoSmart - 200 | ||
|---|---|---|
| Length | 288 mm | |
| Width | 179 mm | |
| Height | 360 mm | |
| Hose connection | 16/22 bzw. 17 mm | |
| Power cord length | 1,5 m | |
| Suitable for aquariums | up to 200 l | |
| Oase FiltoSmart - 300 | ||
|---|---|---|
| Length | 290 mm | |
| Width | 190 mm | |
| Height | 435 mm | |
| Hose connection | 16/22 bzw. 17 mm | |
| Power cord length | 1,5 m | |
| Suitable for aquariums | up to 300 l | |
Scope of Delivery
Oase FiltoSmart – 60- Device head
- Blanking plug
- Inflow hose connector (IN)
- Container filled with filter media
- Slide lock
- Outlet hose connector
- Bag with 4 feet
- Ceramic substrate (2 bags of 120 g each)
- Hose
- Outflow pipe
- Inflow pipe
- Device head
- Blanking plug
- Container with filter media
- Base stand
- Locking clips (2×)
- Connector unit with hose fittings (IN/OUT)
- Ceramic substrate
- Bag with 4 feet
- Inflow pipe
- Outflow pipe
- Hose
- Connection set
- Device head
- Adjustable handle
- Blanking plug
- Container with filter media
- Base stand
- Locking clips (2×)
- Connector unit with hose fittings (IN/OUT)
- Filter bags with activated carbon (2×)
- Ceramic substrate (2×)
- Bag with 4 feet
- Inflow pipe
- Outflow pipe
- Hose
- Connection set
- Device head
- Adjustable handle
- Blanking plug
- Container with filter media
- Base stand
- Locking clips (2×)
- Connector unit with hose fittings (IN/OUT)
- Filter bags with activated carbon (2×)
- Ceramic substrate (3×)
- Bag with 4 feet
- Inflow pipe
- Outflow pipe (2×)
- Hose piece for outlet pipes
- Hose
- Connection set
Oase
Founded in 1949, the traditional German company Oase from Hörstel in Germany is passionate about developing and selling professional equipment for all aspects of water. Filters, pumps, water conditioners, complete aquariums as well as fish food and accessories for aquaristics are part of the product range. With the biOrb product line, decorative and technically advanced all-in-one terrariums including accessories are also part of the portfolio. In addition, Oase is very successful worldwide in the garden, pond and waterworks sectors and, with Oase Professional, also offers solutions for hydraulic engineering, fountain technology and pond management.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | OASE GmbH |
| Street | Tecklenburger Straße 161 |
| City | 48477 Hörstel |
| State | Nordrhein-Westfalen |
| Country | Deutschland |
| info@oase.com | |
| Website | www.oase.com/de-de |
General information
| Item no. |
|
| EAN | 4010052426655 |
| Weight | 4,65 kg |
| Shipping weight | 5,26 kg |
