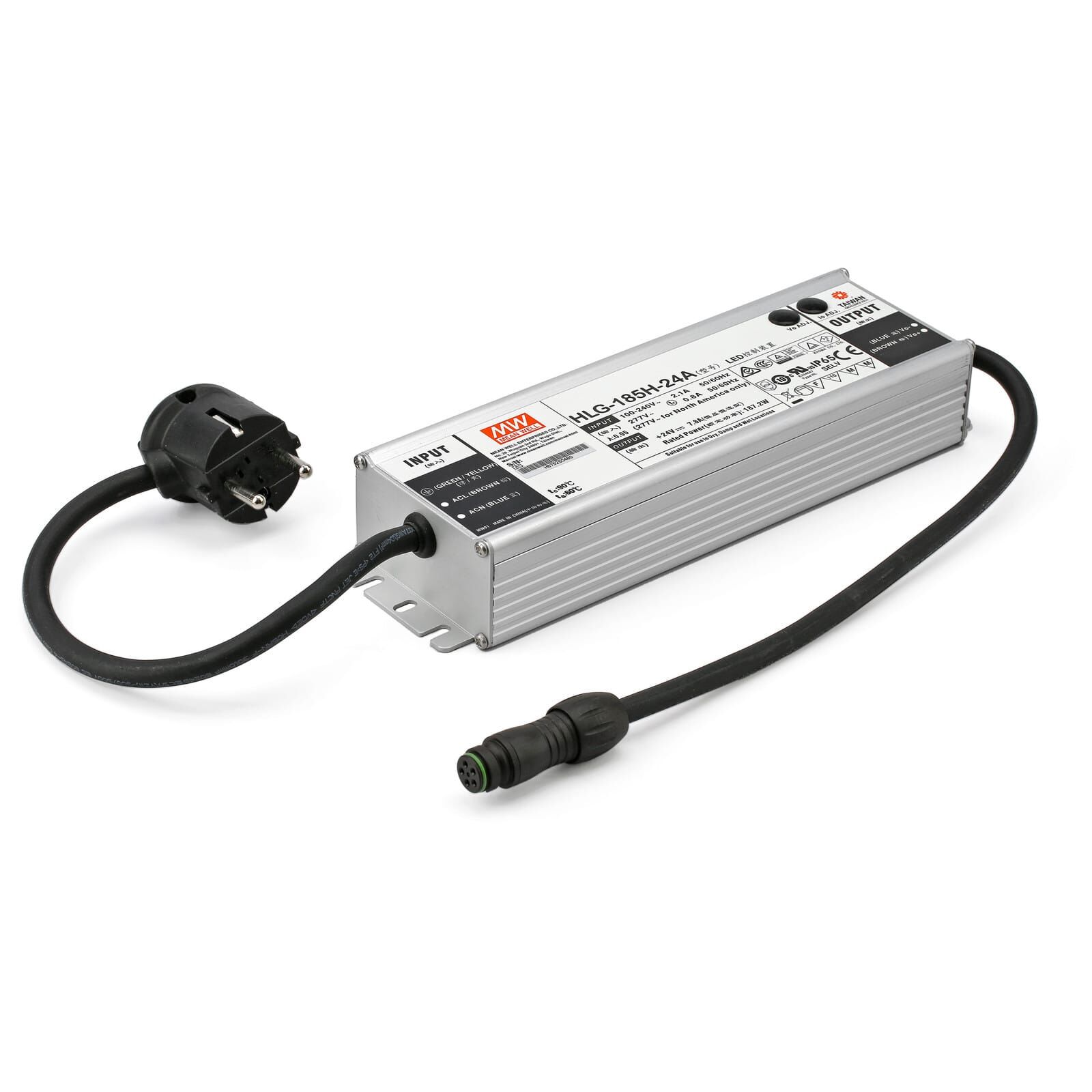

daytime LED-Converter 24V
- Power supply unit for daytime matrix & onex
- Extra-low-voltage power supplies in accordance with DIN 61347-2
- Equipped with a Euro-plug
- Nominal capacity (Watt) of the converter may not be exceeded in any case!
- NOT suitable for cluster, cluster CONTROL and eco
Curbside delivery: This item ships by freight carrier and is delivered to the curb only, not to your door or into your home. The carrier will call you in advance to schedule a delivery date. Learn more about freight delivery
Customers also bought
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
For the operation of a daytime LED system a LED converter is required. These converters are safety low-voltage power supplies in accordance with DIN 61347-2 to operate the daytime LED systems.
Equipped with a Euro-plug.
These 24 V Converters are only suitable for the matrix and onex series - not for eco, cluster & cluster CONTROL!
General Usage
Note that the sum of the LED lighting power of devices connected to a converter may not exceed the nominal power (Watts) of the converter.
If, for example, four LED-modules with 10 W each (40 W total nomimal power) are installed in the lamp, the converter with 40 W is needed. But if five LED-modules are used (50 W total nomimal power), the 60 W converter is required.
There is no problem if the lighting power is congruent with the nominal power of the converter. So the operation of six LED-modules with 10 W each (60 W total nomimal power) operates flawlessly with a 60 W converter.
When two lamps are operated using a Distributor on a single power supply unit, the total nominal power of the lamps may not exceed the rated power of the converter. So, for example, for two lamps with two LED-modules each (20 W nominal lamp power / 40 W total nominal power), a 40 W converter is required.
Usage
| Number of modules | Nominal Power | Suitable Converter |
|---|---|---|
| 1 | 10 Watts | 25 Watts |
| 2 | 20 Watts | 25 Watts |
| 3 | 30 Watts | 60 Watts |
| 4 | 40 Watts | 60 Watts |
| 5 | 50 Watts | 60 Watts |
| 6 | 60 Watts | 60 Watts |
| 7 | 70 Watts | 90 Watts |
| 8 | 80 Watts | 90 Watts |
| 9 | 90 Watts | 90 Watts |
| 10 | 100 Watts | 120 Watts |
| 11 | 110 Watts | 120 Watts |
| 12 | 120 Watts | 120 Watts |
Product safety
General Notes:
- Observe the maximum load capacity.
daytime
Daytime LED aquarium lighting - made in Germany - is one of the most efficient LED lighting manufacturers in the aquarium industry. The illumination systems daytime matrix, daytime onex, daytime pendix and daytime eco offer most flexible and individual solutions for brilliant aquarium illumination. The daytime lights are equipped with leading quality LEDs from SSC (SEOUL SEMI CONDUCTERS) with an efficiency of up to 230 lumens per watt and an outstanding colour rendering index (CRI) of up to 90. All daytime luminaries are water- and dust resistant with IP 67, DIN EN 60529 certificate. The lifespan lies at around 60.000 hours. All daytime lights are anodized and resistant against seawater with DIN81249-1 certificate. For the aquarium, aquascape or aquatic plant aquarium, the perfect solution to realise biotope-compatible and natural lighting with LEDs.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | Tropical Heimtierbedarf Deutschland GmbH |
| Street | Bühlfelderweg 12 |
| City | 94239 Ruhmannsfelden |
| State | Bayern |
| Country | Deutschland |
| info@daytime.de | |
| Website | www.daytime.de |
General information
| Item no. |
|
| EAN | 4260498938926 |
| Weight | 1,24 kg |
| Shipping weight | 1,30 kg |
